Ai-Pex Apex Locator with Pulp Tester

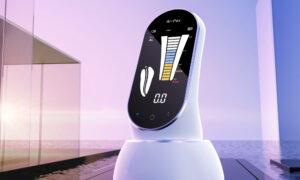

Advanced Technology More Accurate

• Enhanced accuracy: Advanced technology reduces measurement errors
• Fast processing: U.S. central processing chip with DSP processing module
• Startup confidence: Hassle-free auto-calibration on startup
• High precision components: 0.1% tolerance for reliable measurements

Accurate Determination of Working Length

• Lowered environment requirements
• Suitable for various complex root canals
• Unaffected by blood or residual pulp
• Measures precisely whether the canal is dry or wet

Constant Current Source Electric Pulp Testing

When the clinical need to determine the vitality of the pulp arises, an electric pulp tester is a useful adjunct. Thermal tests are not always sufficient to stimulate neural tissues in the coronal aspect of the pulpal tissue.

There are two types of electric pulp testers: constant current type and constant voltage type. The constant current type maintains a stable current throughout the test, while the constant voltage type maintains a constant voltage. In assessing pulpal vitality and correlating test results with histopathological findings, constant-current pulp testers provide higher accuracy.

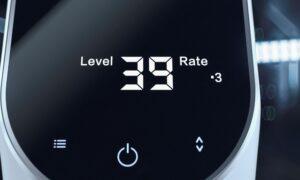

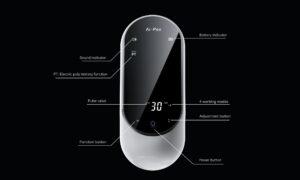

Brief Introduction of Icons in Electric Pulp Testing Function (PT Mode)

4 working modes: 6.2s to reach the maximum pulse intensity at the quickest speed

How to Use the Pulp Vitality Test Function

• Long press the function button to switch to PT mode
• Press the speed button to adjust to the suitable working mode
• Connect lip hook and probe
• Coat the head of probe with a layer of conductive agent (toothpaste, etc.)
• Place the probe at the 1/3 position of the tooth neck.
• Test the tooth and its adjacent tooth separately and compare the values when the patient feels tingling.
• Determine the pulp vitality based on comparative numerical analysis

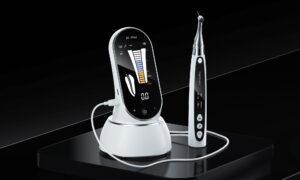

Enable Working Length Control During Preparation When Connected to an Endo Motor

Connecting Ai-Pex to an endo motor enables real-time monitoring of file position within the canal and activates multiple automatic functions (e.g., Auto Reverse).

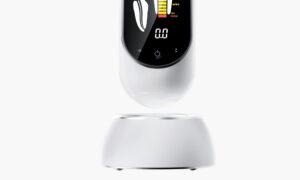

Magnetic Adsorption Base

360° rotatable

The viewing angle of the screen can be adjusted, no backlighting.

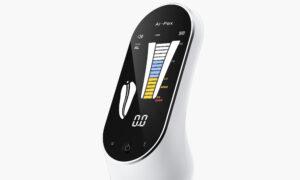

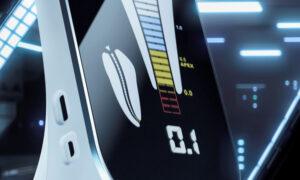

Large Color Screen & Sound Recognition

• 3.8 inch LCD touch screen
• Four-color display operation interface
• It is clinically recommended to make the measurement to the 0.0 position and then manually subtract 0.5~1 mm to obtain the final working length.
• Enable easier measurement · When the length indicator bar reaches a digital number below 1.5, the machine intermittently emits low-frequency beeps.
• The closer the tip is to the apical foramen, the quicker the sound is.
• When the tip reaches the apical alarm, the machine emits continuous high-frequency beeps.
• The apical alarm and sound level can be adjusted as you wish.

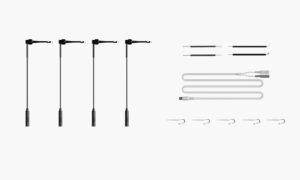

Configuration & Two Pulp Tester Probe Sizes for Convenient Testing

Not autoclavable – Measuring wire (Soft texture, Long service life)

Autoclavable – File clip × 4 (Coated with biological silica gel) Lip hook × 5 (Made of medical-grade stainless steel) Apex locator probe × 2 (Made of medical-grade stainless steel) Pulp tester probe × 2 (Made of medical-grade stainless steel)

2.6 mm diameter probe: for teeth with unexposed pulp, applied to the cervical third

0.5 mm diameter probe: for teeth with unexposed pulp (applied to the crown), or for pulp-exposed teeth (applied to the cervical third)

Specifications & Operation Condition

• Operating time: 7 h
• Charging time: 3 h
• Battery: 3.7 V / 2000 mAh
• Input: ~100–240 V, 50/60 Hz, 0.4 A
• Display: 3.8-inch LCD screen
• Ambient temperature: +5°C ~ +40°C
• Relative humidity: 30% ~ 75%
• Atmospheric pressure: 70 kPa ~ 106 kPa

SKU: GW-AiP
